Zoomlion Dozer Machine With Good Price 220Hp Zd220-3 Wetland Rc Bulldozer

  • Introduction
Introduction

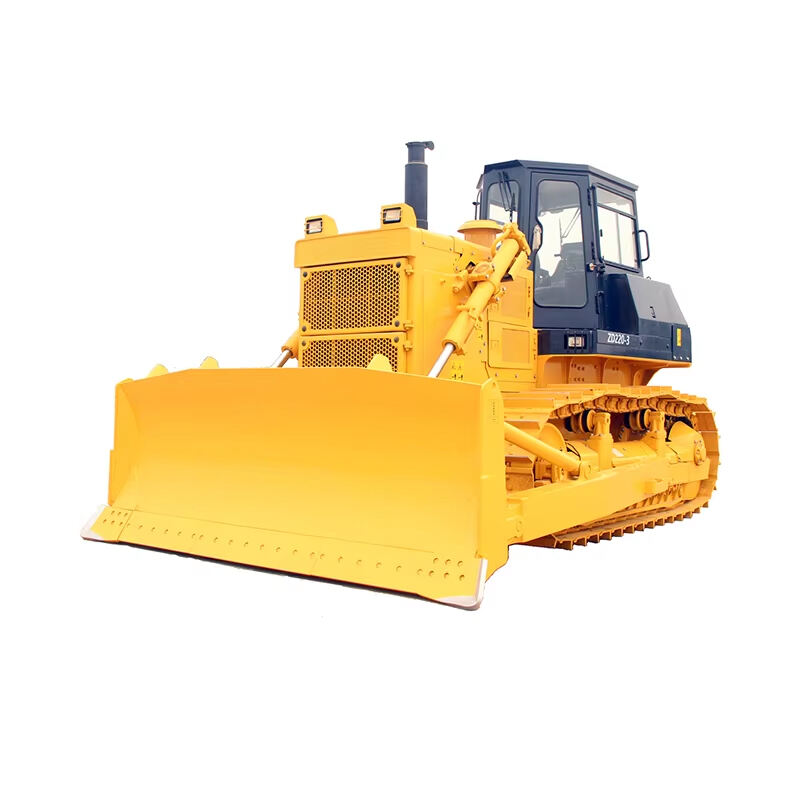

Bulldozer ZD220-3
The power system of ZD220 series bulldozer is equipped with NT855-C280 (BC3) engine with a turbocharger, boasting globally perfect after-sales service system, high reliability, long service life, low fuel consumption and less noise. Even if working on the highland of 3000m above sea level, it can ensure that the rated output power remains unchanged. Precise and reliable electronic monitoring system enables operators to know the equipment operation condition in real time. The machine features user-friendly design, comfortable operation and attractive appearance.

According to different working conditions and environments of bulldozers, work equipment like straight-tilt blade, U-blade, R-blade, angle blade and winch can be equipped. Falling object protective structure (FOPS) and roll-over protective structure (ROPS) are optional. In addition, air conditioning system, centralized lubrication system, engine cold start device and automatic track tensioning device are available to meet different users' demands. This bulldozer is widely used in the earthwork constructions of building, road building, water conservancy, agriculture and national defense.
ZD220-3 bulldozer for hot area is equipped with air conditioning system and water tank specially designed for desert areas. Special ventilation and heat dissipation design is made for the engine protective cover. The UV protective film for cab window and UV protective layer for hose are optional. It can work in about 50°C high-temperature environment.

ZD220F-3 bulldozer for forest area is equipped with a six-post roll-over protective structure (ROPS) and hydraulic or mechanical winch. Work equipment like extended ripper rack and straight-tilt blade with guard bar are optional. It is suitable for working in forest exploitation areas.
Items
Units
ZD220-3/6
Engine
Model
/
NT855-C280/NT855-C235
Displacement
L
14
Rated Speed
r/min
1800
Rated Power
kW
175
Working Device
Blade Type
/
Straight tilt blade
Width
mm
3725
Height
mm
1315
Max. Lift of Blade Above Ground
mm
1210
Max. Drop of Blade Below Ground
mm
538
Blade Capacity
6.4
Dimensions and Weight
Operating Weight
kg
23600
Length (without ripper)
mm
5460
Length (with multi/single-shank ripper)
mm
6811/7273
Width
mm
3725
Height(to top of muffler)
mm
3395

Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is a top-five global construction machinery company and one of China's first national innovative enterprises and national technological innovation demonstration enterprises, enjoying an exceptional reputation within the industry. Formerly the Changsha Construction Machinery Research Institute of the Ministry of Construction, the company boasts over 50 years of technological expertise and is the technological cradle of China's construction machinery industry, ensuring its products' technological leadership.

The Zoomlion bulldozer is equipped with a high-performance diesel engine that meets China III emission standards, with output ranging from 160 to 320 horsepower, ensuring stable power even during high-intensity, continuous operations. The advanced hydraulic transmission system, combined with an optimized hydraulic circuit design, delivers fast response and precise control, significantly improving bulldozing efficiency. By optimizing the matching of the engine and hydraulic system, the Zoomlion bulldozer achieves improved fuel economy while maintaining robust performance. The modular design facilitates daily maintenance, with centralized filter and lubrication points reducing maintenance time. Key components offer long life and spare parts compatibility, effectively reducing lifecycle costs.

Flexible configurations of different dozer blade types (straight-tilt, angle, and U-shaped) and ripper types (single and triple shanks) are available based on customer needs, making them suitable for a variety of applications, including dozing, backfilling, stripping, and crushing. They excel in large-scale site leveling, roadbed construction, and mine stripping.

The Zoomlion bulldozer, with its core values ​​of "reliability, efficiency, fuel efficiency, and ease of maintenance," integrates advanced international technology with practical Chinese operating conditions. It is not only suitable for various domestic projects, but has also been exported to overseas markets such as Southeast Asia, Africa, the Middle East, and Latin America, earning widespread customer recognition. Whether for large-scale infrastructure projects or small- to medium-sized earthmoving operations, the Zoomlion provides reliable power and efficiency.
